CD EtiK8 ® - CD storage system
If your CD collection has outgrown your conventional CD racks then CD EtiK8
is for you. Make use of storage areas that were previously unusable, with our highly cost
effective and volume efficient fully scalable CD rack - to store from 10 to hundreds of
thousands of CD's !
Each CD is stored in a plastic cradle, and up to 40 of these cradles can fit into the
standard backplane. The picture above shows a backplane, with the swing action of the
cradles demonstrated.
Features
 | Low cost per CD |
| Backplane may be mounted horizontally, vertically on any rigid surface (wall, floor or
roof) |
| Backplane available in black powder coat or brushed stainless steel. |
| Cradle pitch can be selected to allow different degrees of cradle rotation. Rotation
allows CD's to be "browsed" without withdrawing them from the cradle. |
| Basic units can be mounted side by side and in horizontal arrays, allowing for seemless
large volume storage. |
| Designed for installation in existing high quality furnishings (expensive wood cupboards
and display cabinets) |
| Keep track of CD's removed from cradles with cradle labels. |
Benefits
| Improve your cashflow - buy only what you need right now, expand with additional
backplanes and cradles when you need it |
| Save thousands in floor rental costs - CD EtiK8 is designed to
facilitate really high density CD storage using previously unusable storage space. |
| Save money by reducing damage to CD cases. |
| Easily manage large CD collections |
Application examples
CD EtiK8 can stand alone or can be utilised in dozens of different ways. It can be
mounted on carousels, exotic hardwood stands, within existing furniture, metal and wooden
shelving, walls and ceilings. Where ever you intall it, it always looks the same and
brings consistency to your CD storage environment.

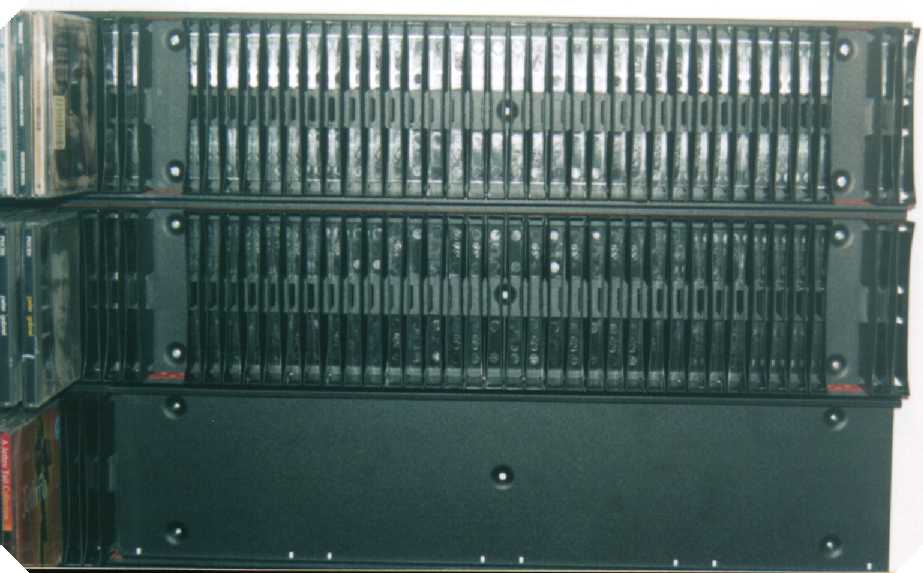

| Installation : Two backplanes installed with cradles
removed either side to show location of mounting screws. Backplane at the bottom still to
receive its cradles. The cradles are shown in the maximum storage density. If you require
more swivel range, by using different hole pitches each backplane can be configured to
store between 10 and 40 CD's. |
 |

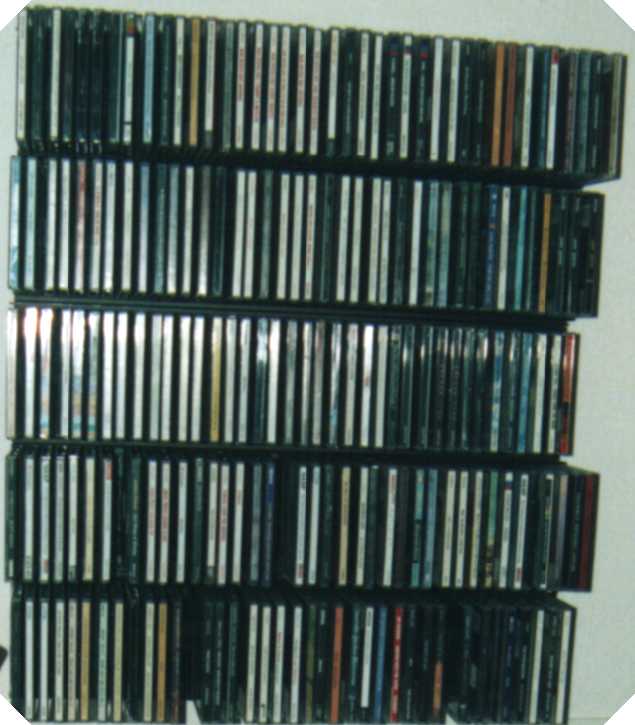

| Fully populated CD array : Set of 5 backplanes screwed
onto optional mounting rails. Up to 200 CD's can be stored in this configuration. |
|

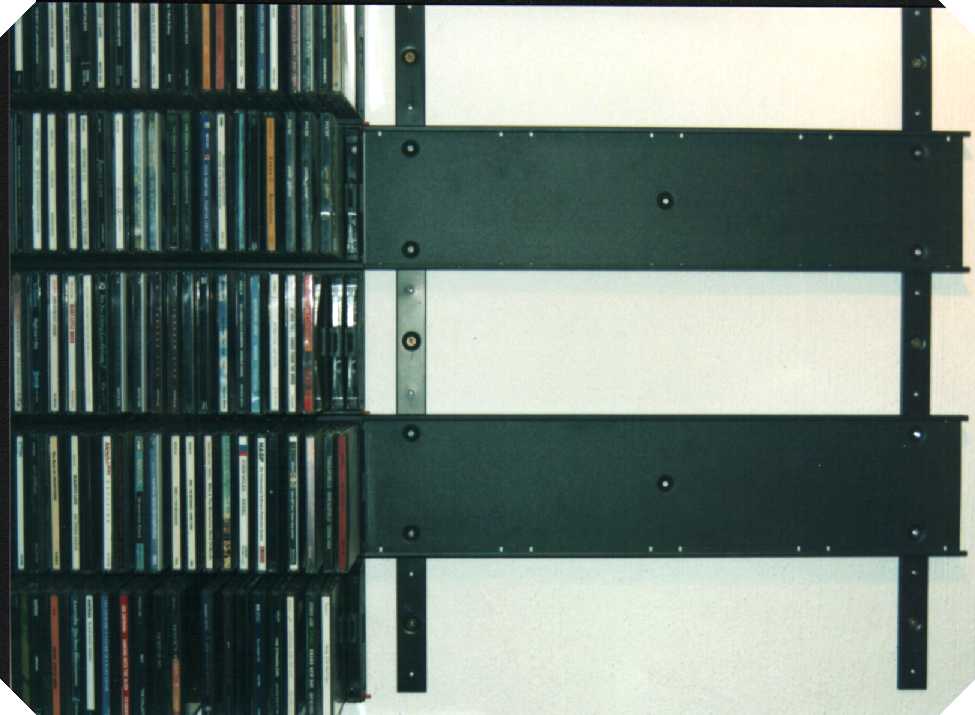

| Increasing the capacity of existing storage : Installation
of mounting rails, showing two empty backplanes. This is the easiest method of installing
large numbers of CD EtiK8 units. Each mounting rail is installed using 3 screws. The
backplanes are then screwed onto the mounting rails using M4 machine screws (supplied) |
 |
Technical information
The following information is provided to prospective large volume users as a guide
only.
| Backplane Mass - Approximately 900g
Dimensions - 560mm x 137mm x 25mm
|
| Cradle Mass 22g each
Dimensions - 44mm x 133mm x 14mm each
|
| Complete fully populated backplane (cradles excluding CD's) Mass - 1.6kg
|
The product currently only provides storage for the standard 9mm thick CD case. It will
also provide storage for two 5mm slimline cases per cradle.
